The DR750X-1CH represents the benchmark in the single-channel dash cam category, the choice for the power-user who demands the ultimate in terms of video quality and next-generation connected features.
With Full HD 1080p performance, the DR750X-1CH provides class-leading protection for your vehicle by recording fluid 60 frames per second video footage via an ultra-wide lens with a 139° viewing angle. A Sony STARVIS image sensor ensures the best possible image quality under any lighting conditions. Also included is GPS logging, Wi-Fi, Cloud-connectivity and impact and motion detection. All this in a stealthy compact design.
The DR750X is also compatible with BlackVue Cloud – a unique suite of LIVE app-based features that remotely connecting you with your vehicle, providing additional functionality including Live View, Remote Video Playback, Video Backup, Realtime Tracking and Emergency Notification Alerts.
The DR750X is upgradable to full 4G always-on Cloud Connectivity, with the addition of the CM100LTE external connectivity module and supplied data SIM, meaning that you are always connected to your dash cam via the BlackVue app, and always able to receive notifications and remotely view video clips in the event of an incident.

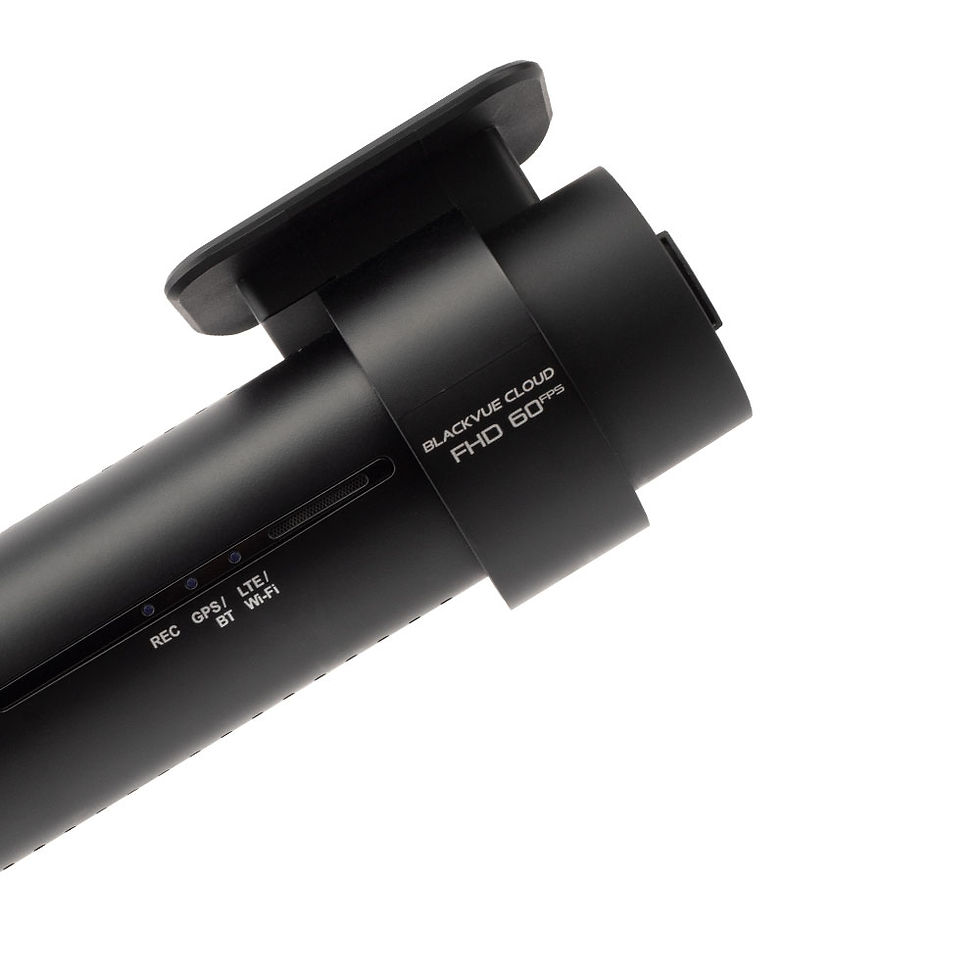

BlackVue DR750X-1CH
Specifications Model Name DR750X-1CH Plus Channel 1CH (upgradable to 2CH)
Highlights Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
Product Dimensions W 118.5 mm (4.67″) x H 36 mm (1.42″) / 103 g (3.7 oz)
Memory Support microSD card up to 256GB
Recording Modes – Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)Parking Mode YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Viewing Angle Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate Full HD @60fps
* Frame rate may vary during Wi-Fi streamingVideo Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 MbpsFormat Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS Built-in (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED
Button Button: Wi-Fi ON/OFF (Press)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)Operation Temperature -20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature -20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off Approx. 80 °C (176 °F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (WiFi On / GPS On / 1CH) : Avg. 250mA / 12V
Normal Mode (WiFi Off / GPS On / 1CH) : Avg. 200mA / 12V
Parking Mode (WiFi On / GPS Off / 1CH) : Avg. 230mA / 12V
Parking Mode (WiFi Off / GPS Off / 1CH) : Avg. 180mA / 12V
* Actual power consumption may vary depending on use conditions and environmentCertifications FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
Software e BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra (10.12) or higherApplication BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
Others Adaptive Format-Free File Management System
LTE External (optional) Recording time
Model Memory Capacity Image Quality Resolution DR750X-1CH /
DR750X-1CH PlusFull HD @60fps 16GB Extreme 1 HR 15 MIN Highest 2 HR 35 MIN High 3 HR Normal 3 HR 50 MIN 32GB Extreme 2 HR 30 MIN Highest 5 HR 10 MIN High 6 HR Normal 7 HR 40 MIN 64GB Extreme 5 HR Highest 10 HR 20 MIN High 12 HR Normal 15 HR 20 MIN 128GB Extreme 10 HR Highest 20 HR 40 MIN High 24 HR Normal 30 HR 40 MIN 256GB Extreme 20 HR Highest 41 HR 20 MIN High 48 HR Normal 61 HR 20 MIN Bitrate (Mbps) Extreme 25 Highest 12 High 10 Normal 8
