The DR590X-1CH takes Full HD 1080p resolution video, a 139° viewing angle and Sony’s premium STARVIS image sensor and wraps it up in compact, cost effective package.


The BlackVue DR590X-1CH is a high performance Full HD dash cam with an ultra-wide 139° viewing angle, Wi-Fi connectivity and excellent low-light performance. The DR590X-1CH boasts Full HD 1080p resolution and 60 frames per second (fps) video quality and is equipped with Sony’s premium STARVIS image sensor, providing outstanding performance in low-light conditions. Additionally, a Night Vision feature further enhances details in dark environments, where it matters most.


Thanks to the BlackVue app and the inclusion of Wi-Fi functionality, connecting to the DR590X-1CH from a smartphone or tablet is simple, making setup and accessing video files an easy process.


Video footage can also be viewed on any Windows PC or Apple Mac computer using the supplied BlackVue Viewer application. Lastly the DR590X-1CH’s compact form factor, stealth styling and discreet mounting position behind the rear view mirror, mean it’s barely noticeable from outside of the vehicle.

With Full HD 1080p performance, the DR590X-1CH provides class-leading protection for your vehicle by recording fluid 60 frames per second video footage via an ultra-wide lens with a 139° viewing angle. A Sony STARVIS image sensor ensures the best possible image quality under any lighting conditions. GPS logging is available by adding the optional DR590X GPS Antenna.

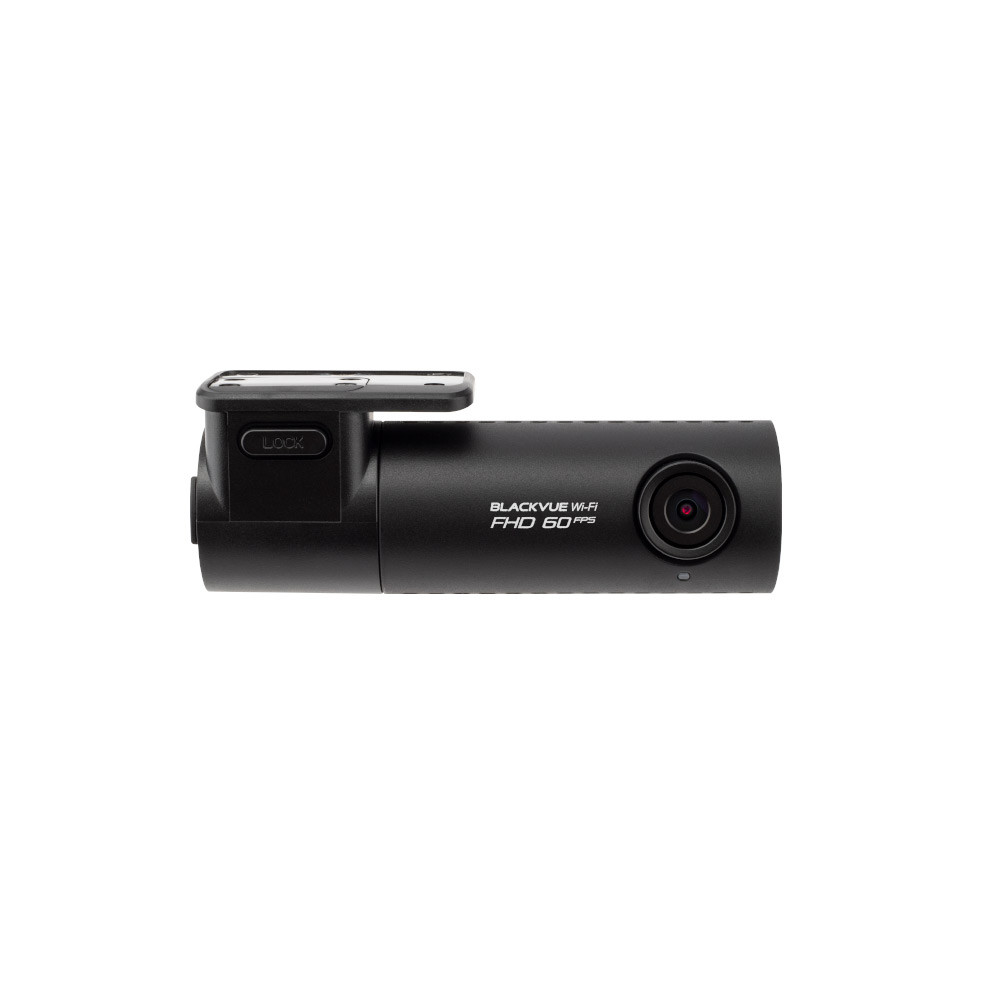

BlackVue DR590X-1CH

  • Specifications
    Model Name DR590X-1CH With GPS



    Full HD, 60fps, Wi-Fi, External GPS, Sony Sensor

    Product Dimensions

    W 111.8 mm (4.40″) x H 34 mm (1.34″) / 86.3 g (3.04 oz)

    Memory Support

    microSD card up to 256GB

    Recording Modes

    – Normal,
    – Event (Impact Detection / Speed Limit),
    – Parking Mode (Motion+Impact Detection)

    Parking Mode

    YES (included)

    Parking Mode Event Voice Notifications


    Imaging Sensor

    Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)

    Viewing Angle

    Diagonal 139°, Horizontal 116°, Vertical 61°

    Resolution Frame Rate

    Full HD @60fps
    * Frame rate may vary during Wi-Fi streaming

    Video Codec

    H.264 (AVC)

    Image Quality and Bitrate Front/Rear

    Highest (Extreme): 25 Mbps
    Highest: 12 Mbps
    High: 10 Mbps
    Normal: 8 Mbps

    Format Free

    YES (Adaptive)

    Event File Overwrite Protection


    SD Card Failure Alert


    Scheduled Reboot


    Video File Extension



    Built-in (802.11n (2.4~2.4835 GHz))


    External (included)





    Impact Sensor

    3-Axis Acceleration Sensor

    LED Indicators

    Recording LED, GPS LED, Wi-Fi LED, Front Security LED


    Button: Wi-Fi ON/OFF

    Operation Temperature

    -20℃ – 70℃ (-4°F – 158°F)

    Storage Temperature

    -20℃ – 80℃ (-4°F – 176°F)

    High Temp Cut Off

    Approx. 70℃ (158°F)

    Backup Battery

    Built-in supercapacitor

    Input Power

    DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)

    Power Consumption Hour

    Normal Mode (WiFi On/GPS On): 240mA/hour
    Normal Mode (WiFi Off/GPS On): 200mA/hour
    Parking Mode (WiFi On/GPS Off): 220mA/hour
    Parking Mode (WiFi Off/GPS Off): 180mA/hour
    When connected to CM100GLTE-M (Optional)
    Normal Mode (WiFi On/GPS On): 290mA/hour
    Normal Mode (WiFi Off/GPS On): 260mA/hour
    Parking Mode (WiFi On/GPS Off): 250mA/hour
    Parking Mode (WiFi Off/GPS Off): 220mA/hour
    * Actual power consumption may vary depending on use conditions and environment.


    FCC, CE, RoHS, Telec, WEEE, IC


    BlackVue Viewer
    * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher


    BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)


    Adaptive Format-Free File Management System

    Recording time

    Model Memory Capacity Image Quality Resolution
    DR590X-1CH     Full HD @60fps
    16GB Extreme 1 HR 15 MIN
    Highest 2 HR 35 MIN
    High 3 HR
    Normal 3 HR 50 MIN
    32GB Extreme 2 HR 30 MIN
    Highest 5 HR 10 MIN
    High 6 HR
    Normal 7 HR 40 MIN
    64GB Extreme 5 HR
    Highest 10 HR 20 MIN
    High 12 HR
    Normal 15 HR 20 MIN
    128GB Extreme 10 HR
    Highest 20 HR 40 MIN
    High 24 HR
    Normal 30 HR 40 MIN
    256GB Extreme 20 HR
    Highest 41 HR 20 MIN
    High 48 HR
    Normal 61 HR 20 MIN
    Bitrate (Mbps) Extreme 25
    Highest 12
    High 10
    Normal 8
